ColorDRIVE 6

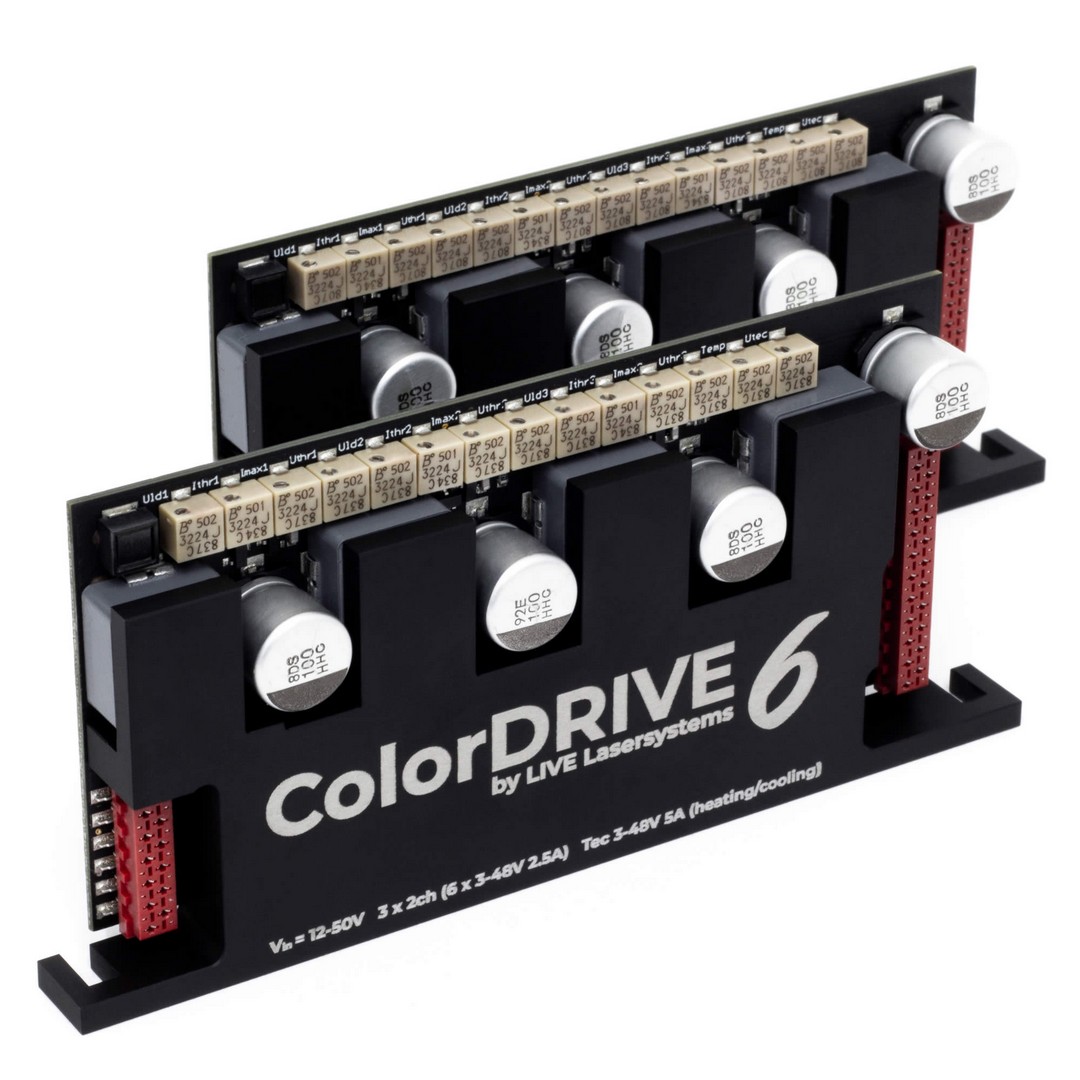

ColorDRIVE is a high performance laser diode driver with integrated TEC driver.

ColorDRIVE is designed to be efficient and versatile. It supports a high operation voltage and offers stable, and fast regulation in a small, easy to integrate form factor.
It offers 720W maximum output power for laser diodes and 240W for TECs. The TEC power can be extended up to 1200W with the use of our TEC booster technology. TEC boosters enable to drive up to 48V @ 25A TECs with minimal cost and maximum efficiency.

A temperature good output (power reduction) enables an easy integration of the driver in any system. It gives you the possibility to check if the TEC driver has reached the desired temperature e.g., if everything is working as it should.

The driver also features a NTC sensor error detection.

The drivers are fully compatible with our ColorBUS system. ColorBUS makes it possible to connect everything in a tidy way and furthermore uses the power reduction (PR) output (temp ok) to command a reduced drive current from our ColorDRIVEs to protect the laser diodes if a TEC should fail.
Specification
Type
3x2ch Diode driver + TEC driver
Dimensions
111.5x50x18mm
Operation voltage
up to 48V
Efficiency
up to 97.5%
Modulation frequency2.2MHz (-3db)
Output current6x 2.5A (3 modulation channels)
TEC driver5-48V 5A
FeaturesDual Voltage Technology (DVT), ColorBUS compatible, TecBOOSTER compatible, power reduction at excessive and subnormal temperatures
Downloads
Article in Shop
Diode/TEC Drivers
High performance diode driver with integrated TEC driver.
This product is unavailable.
339,00 €(MwSt. excl.)
Add
Compatible Accessories
Components
Power supply for laser applications.
69,00 €(MwSt. excl.)
Add
Diode/TEC Drivers

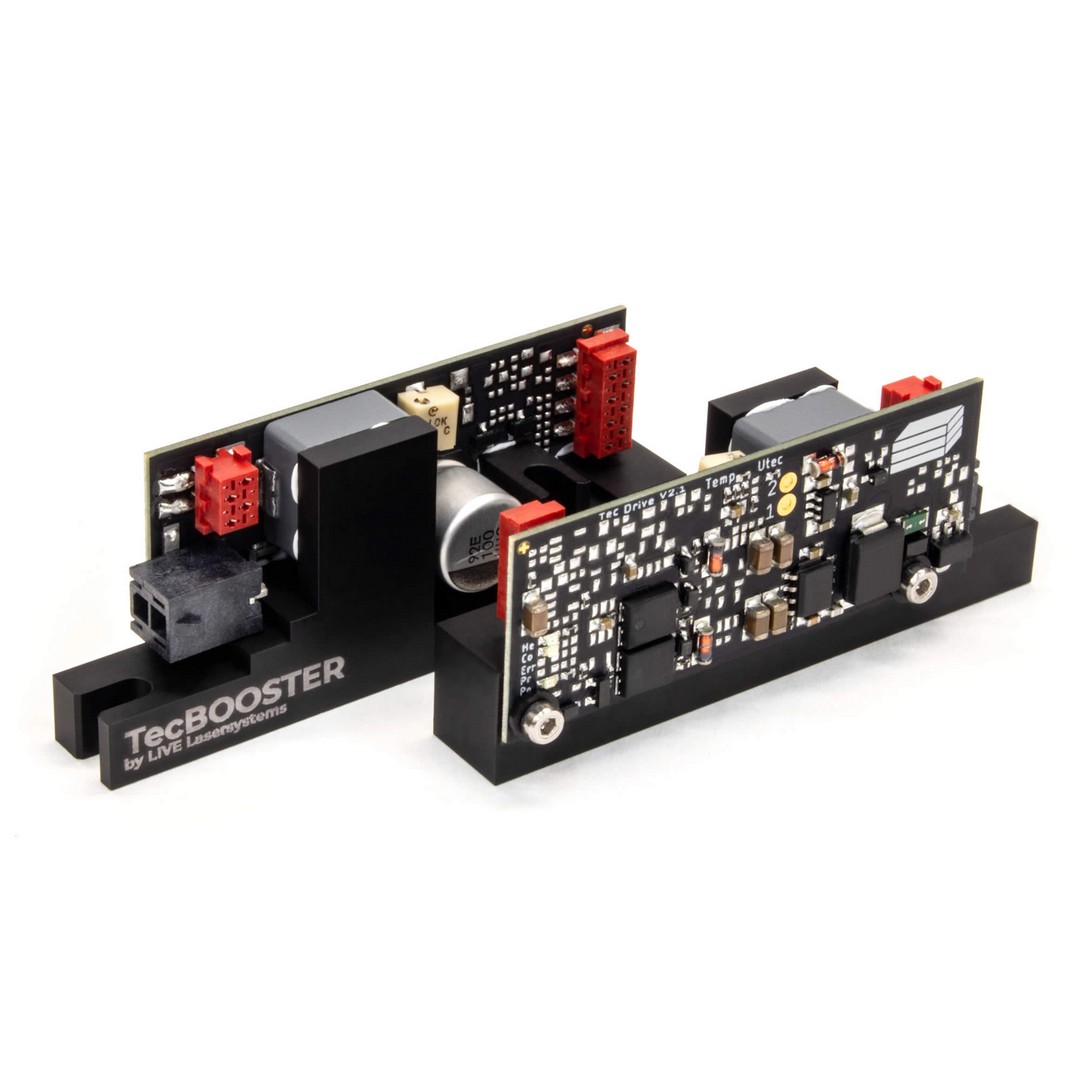

High performance booster to extend the drive-capabilities of a ColorDRIVE/TecDRIVE.
125,00 €(MwSt. excl.)
Add
Diode/TEC Drivers
Control PCB for easy manual control of any ColorDRIVE one with option for external signal input.
40,00 €(MwSt. excl.)
Add
Diode/TEC Drivers
Adapter PCB for a screwless entry plug or solderpads/pin-header holes to ColorBUS connector.
12,00 €(MwSt. excl.)
Add
Diode/TEC Drivers

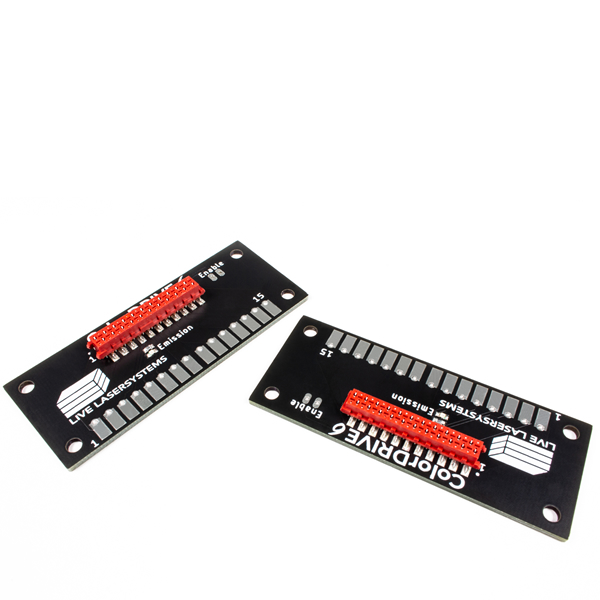

Breakout adapter PCB with screw cage clamp connector or solder pads/pin-header holes for ColorDRIVE 6.
12,00 €(MwSt. excl.)
Add
